| The following parts are useing for racing purpose only ! | ||||||||||
|
|
||||||||||

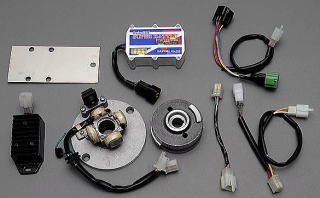

| #: 271560-xxx / EUR 654,50 | MEGA LIGHT OUTER ROTER KIT | DIGITAL OUTER ROTER PERFORMANCE DETAILS: | ||||||||
 |
FLYWHHEL WEIGHT | 455 GRAM | ||||||||
| IDLE SPARK TIMING | BTC 16 DEGREES / 1.500 RPM | |||||||||
| DYNAMO CAPACITY | 35W / 5.000 RPM | |||||||||
| SPARK SYSTEM | DC-C.D.I. | |||||||||
| DIGITAL CONTROL SPARK TRANSITION | 3.000 RPM | |||||||||
|
|
||||||||||
| #: 271560-STD / EUR 577,50 | CHIP - STD | |||||||||
| DIGITAL SPARK TIMING | AT 3.000 RPM | AT 10.000 RPM | ||||||||
| MAP-1 | BTC 38,0 DEGREES | BTC 33,0 DEGREES | ||||||||
| MAP-2 | BTC 36,0 DEGREES | BTC 31,0 DEGREES | ||||||||
| MAP-3 | BTC 34,0 DEGREES | BTC 29,0 DEGREES | ||||||||
| MAP-4 | BTC 32,0 DEGREES | BTC 27,0 DEGREES | ||||||||
|
|
||||||||||
| #: 271560-BTM1 / EUR 577,50 | CHIP - BTM 1 | #: 271560-BTM2 / EUR 577,50 | CHIP - BTM 2 | |||||||
| DIGITAL SPARK TIMING | AT 3.000 RPM | AT 10.000 RPM | DIGITAL SPARK TIMING | AT 3.000 RPM | qqq | AT 10.000 RPM | ||||
| MAP-1 | BTC 29,0 DEGREES | BTC 24,0 DEGREES | MAP-1 | BTC 33,0 DEGREES | BTC 28,0 DEGREES | |||||
| MAP-2 | BTC 28,0 DEGREES | BTC 23,0 DEGREES | MAP-2 | BTC 32,0 DEGREES | BTC 27,0 DEGREES | |||||
| MAP-3 | BTC 27,0 DEGREES | BTC 22,0 DEGREES | MAP-3 | BTC 31,0 DEGREES | BTC 26,0 DEGREES | |||||
| MAP-4 | BTC 26,0 DEGREES | BTC 21,0 DEGREES | MAP-4 | BTC 30,0 DEGREES | BTC 25,0 DEGREES | |||||
| This chip setting is good for High-Compression & Big-Bore engine. | ||||||||||
|
|
|
|||||||||
| #: 271360 / EUR 86,40 | C.D.I. MEGA BATTLE | #: 271061 / EUR 62,70 | C.D.I. SUPER BATTLE | |||||||
 |
* SIX LEVELS MAPPING * FOR 12V / C.D.I. * MONKEY / GORILLA. |
 |
* FOR 12V / C.D.I. * MONKEY / GORILLA |
|||||||
|
|
||||||||||

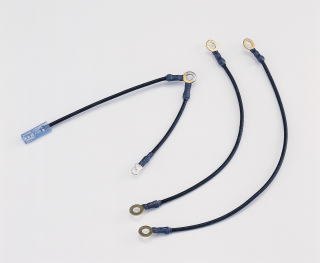

| #: 271540 / EUR 41,10 | BATTERY-LESS UNIT | #: 2714** / EUR 18,90 | GROUND HARNESS | |||||||
 |
* FOR 12V / C.D.I., |  |
* GROUND HEAVY DUTY REINFORCEMENT #: 271420 / BLUE #: 271421 / RED #: 271422 / BLACK SOLD OUT |
|||||||
|
|
||||||||||
| #: 200010 / EUR 41,10 | RACING IGNITION COIL | #: 200013 / EUR 41,10 | RACING IGNITION COIL | |||||||
 |
* FOR 12V / C.D.I. * BODY COLOR: RED * ALL HONDA MINI BIKES |
 |
* FOR 12V / C.D.I. * BODY COLOR: BLACK * ALL HONDA MINI BIKES |
|||||||
|
|
||||||||||
| #: 275035-04 / EUR 34,60 | BRAIDED SILICONE PLUG CORD WITH CAP | #: 275035-19 / EUR 34,60 | BRAIDED SILICONE PLUG CORD WITH CAP | |||||||
 |
* COLOR: RED * HD ADD. GROUND HARNESS * NEW PARTS NO.: 298035-14 |
 |
* COLOR: RED * HD ADD. GROUND HARNESS * NEW PARTS NO.: 298035-19 |
|||||||
|
|
||||||||||
| #: 271010-14 / EUR 73,50 | IG COIL & PLUG CORD WITH CAP | #: 271013-19 / EUR 73,50 | IG COIL & PLUG CORD WITH CAP | |||||||
 |
* PLUG CAP RED * RACING IGNITION COIL RED * BRAIDED PLUG CORD * HD ADD. GROUND HARNESS * NEW PARTS NO.: 295010-14 |
 |
* PLUG CAP BLACK * RACING IGNITION COIL BLACK * BRAIDED CORD * HD ADD. GROUND HARNESS * NEW PARTS NO.: 295011-19 |
|||||||
|
|
||||||||||
| #: 295010-04 / EUR 58,40 | IG COIL & PLUG CORD WITH CAP | #: 295011-09 / EUR 58,40 | IG COIL & PLUG CORD WITH CAP | |||||||
 |
* PLUG CAP RED * RACING IGNITION COIL RED * BRAIDED PLUG CORD |
 |
* PLUG CAP BLACK * RACING IGNITION COIL BLACK * BRAIDED PLUG CORD |
|||||||
|
|
||||||||||
| #: 271400 / EUR 92,40 | MAIN HARNESS | #: 270018 / EUR 8,40 | STOP S/W HARNESS | |||||||
 |
* 0.75SQ REINFORCEMENT HARMESS * CAN BE USED HONDA ALARM OPTION |
 |
* LONG HARNES (L=600MM) COMPARE WITH ORIGINAL MONKEY = 500MM |
|||||||
|
|
||||||||||
| #: 600001 / EUR 14,50 | TRANSFORM CABLE, C.D.I. | #: 600003 / EUR 14,50 | TRANSFORM CABLE, C.D.I. | |||||||
 |
* IN =ANGLE (5 LEGS) * OUT =COUPLER TO JP C.D.I. |
 |
* IN = JP C.D.I. MAIN HARNESS * OUT = ANGLE (5 LEGS) COUPLER |
|||||||
|
|
||||||||||
| #: 600002 / EUR 12,10 | TRANSFORM CABLE, ENGINE | #: 600004 / EUR 15,80 | TRANSFORM CABLE, WINKER S/W | |||||||
 |
* IN =HONDA NICE E/G * OUT =JP MAIN HARNESS |
 |
* IN =HONDA NICE WINKER S/W * OUT = JP MAIN HARNESS |
|||||||
|
|
||||||||||
| #: 200800 / EUR 8,40 | C.D.I. JOINT KIT | #: 6003PJ / EUR 6,80 | CONNECT SET, TYPE-1 | |||||||
 |
* TO JP C.D.I. |  |
* FITNESS WIRE 0.5~2.0SQ * QUANTITY: 8 PIECES, EACH |
|||||||
|
|
||||||||||
| #: 6004PJ / EUR 4,90 | CONNECT SET, TYPE-2 | #: 6005PJ / EUR 4,20 | CONNECT SET, 250-2 | |||||||
 |
* FITNESS WIRE 0.5~2.0SQ * QUANTITY: 3 PIECES, FEMALE SET * QUANTITY: 6 PIECES, MALE SET |
 |
* FITNESS WIRE 0.5~2.0SQ * HOUSING: 250 FORM * 2 LEGS TYPE |
|||||||
|
|
||||||||||
| #: 6006PJ / EUR 5,00 | CONNECT SET, 250-3 | #: 6007PJ / EUR 5,90 | CONNECT SET, 250-4 | |||||||
 |
* FITNESS WIRE 0.5~2.0SQ * HOUSING: 250 FORM * 3 LEGS TYPE |
 |
* FITNESS WIRE 0.5~2.0SQ * HOUSING: 250 FORM * 4 LEGS TYPE |
|||||||
|
|
||||||||||
| #: 6008PJ / EUR 4,40 | CONNECT SET, 110-2 | #: 6009PJ / EUR 6,20 | CONNECT SET, 110-4 | |||||||
 |
* FITNESS WIRE 0.5~1.25SQ * HOUSING: 110 FORM * 2 LEGS TYPE |
 |
* FITNESS WIRE 0.5~1.25SQ * HOUSING: 110 FORM * 4 LEGS TYPE |
|||||||
|
|
||||||||||
| #: 6010PJ / EUR 7,70 | CONNECT SET, 110-6 | #: 6011PJ / EUR 5,30 | CONNECT SET, 110-3 | |||||||
 |
* FITNESS WIRE 0.5~1.25SQ * HOUSING: 110 FORM * 6 LEGS TYPE |
 |
* FITNESS WIRE 0.5~1.25SQ * HOUSING: 110 FORM * 3 LEGS TYPE |
|||||||
|
|
||||||||||
| #: 6012PJ / EUR 11,00 | CONNECT SET, 110-9 | #: 1301PJ / EUR 2,40 | CONNECTER, SINGLE-MALE | |||||||
 |
* FITNESS WIRE 0.5~1.25SQ * HOUSING: 110 FORM * 9 LEGS TYPE |
 |
* FITNESS WIRE 0.5~2.0SQ * QUANTITY: 10 PIECES |
|||||||
|
|
||||||||||
| #: 1302PJ / EUR 2,40 | CONNECTER, SINGLE-FEMALE | #: 1303PJ / EUR 2,60 | CONNECTER, DUAL-FEMALE | |||||||
 |
* FITNESS WIRE 0.5~2.0SQ * QUANTITY: 10 PIECES |
 |
* FITNESS WIRE 0.5~2.0SQ * QUANTITY: 5 PIECES |
|||||||
|
|
||||||||||
| #: 1304PJ / EUR 1,20 | ISOLATION COVER, SINGLE-MALE | #: 1305PJ / EUR 1,70 | ISOLATION COVER, SINGLE-FEMALE | |||||||
 |
* USE TO #: 1301PJ * QUANTITY: 8 PIECES |
 |
* USE TO #: 1302PJ * QUANTITY: 8 PIECES |
|||||||
|
|
||||||||||
| #: 1306PJ / EUR 1,70 | ISOLATION COVER, DUAL-FEMALE | #: 1307PJ / EUR 3,60 | CONNECTER, CIRCLE-M6 | |||||||
 |
* USE TO #: 1303PJ * QUANTITY: 5 PIECES |
 |
* FITNESS WIRE 0.5~1.25SQ * INSIDE BORE FOR M6 BOLT * QUANTITY: 8 PIECES |
|||||||
|
|
||||||||||
| #: 1308PJ / EUR 4,10 | CONNECTER, CIRCLE-M8 | #: 1309PJ / EUR 4,40 | CONNECTER, CIRCLE-M10 | |||||||
 |
* FITNESS WIRE 0.5~2.0SQ * INSIDE BORE FOR M8 BOLT * QUANTITY: 8 PIECES |
 |
* FITNESS WIRE 0.5~2.0SQ * INSIDE BORE FOR M10 BOLT * QUANTITY: 8 PIECES |
|||||||
|
|
||||||||||
| #: 1310PJ / EUR 2,70 | CONNECTER, 110-MALE | #: 1311PJ / EUR 3,60 | CONNECTER, 110-FEMALE | |||||||
 |
* FITNESS WIRE 0.5~1.25SQ * USE TO HOUSING: 110 FORM * QUANTITY: 10 PIECES |
 |
* FITNESS WIRE 0.5~1.25SQ * USE TO HOUSING: 110 FORM * QUANTITY: 10 PIECES |
|||||||
|
|
||||||||||
| #: 1312PJ / EUR 3,00 | CONNECTER, 250-MALE | #: 1313PJ / EUR 3,00 | CONNECTER, 250-FEMALE | |||||||
 |
* FITNESS WIRE 0.5~2.0SQ * USE TO HOUSING: 250 FORM * QUANTITY: 10 PIECES OPTIONS: #: 1317PJ / EUR 8,00 / 30 PIECES #: 1319PJ / EUR 12,00 / 50 PIECES |
 |
* FITNESS WIRE 0.5~2.0SQ * USE TO HOUSING: 250 FORM * QUANTITY: 10 PIECES OPTIONS: #: 1318PJ / EUR 8,00 / 30 PIECES #: 1320PJ / EUR 12,00 / 50 PIECES |
|||||||
|
|
||||||||||
| #: 1314PJ / EUR 3,00 | CONNECTER, FLAT-MALE | #: 1315PJ / EUR 3,00 | CONNECTER, FLAT-FEMALE | |||||||
 |
* FITNESS WIRE 0.5~2.0SQ * FOR SINGLE USE * QUANTITY: 10 PIECES |
 |
* FITNESS WIRE 0.5~2.0SQ * FOR SINGLE USE * QUANTITY: 10 PIECES |
|||||||
|
|
||||||||||
| #: 1316PJ / EUR 1,20 | ISOLATION COVER, FLAT-FEMALE | |||||||||
 |
* USE TO #: 1315PJ * QUANTITY: 8 PIECES |
|||||||||
|
|
||||||||||
| THE ABOVE PRICES ARE INCLUDING GERMAN 19% VAT. FUER BEWOHNER DER EUROPAISCHEN UNION SIND IM PREIS 19% MWST. ENTHALTEN. |
||||||||||
|
|
||||||||||
